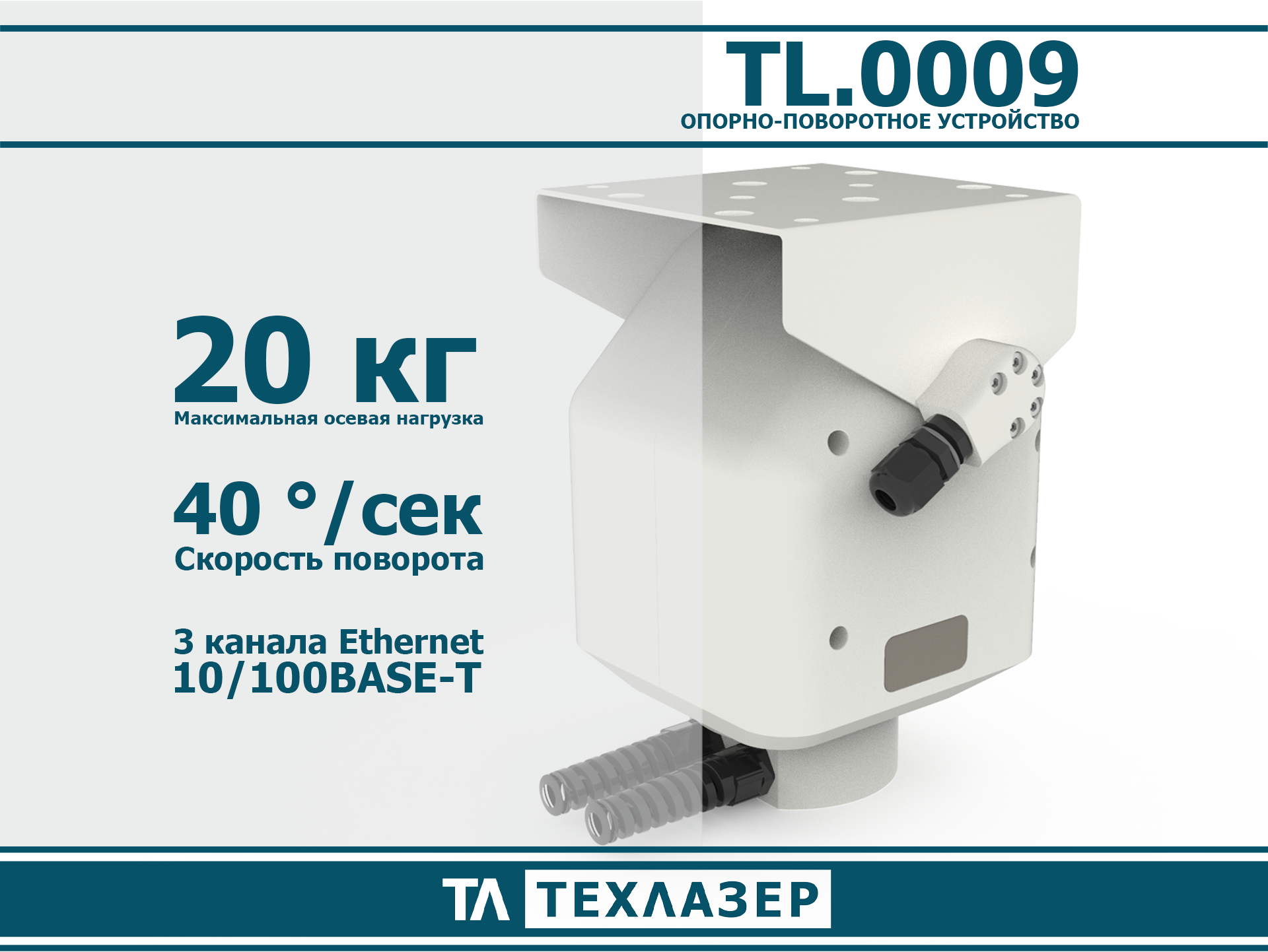

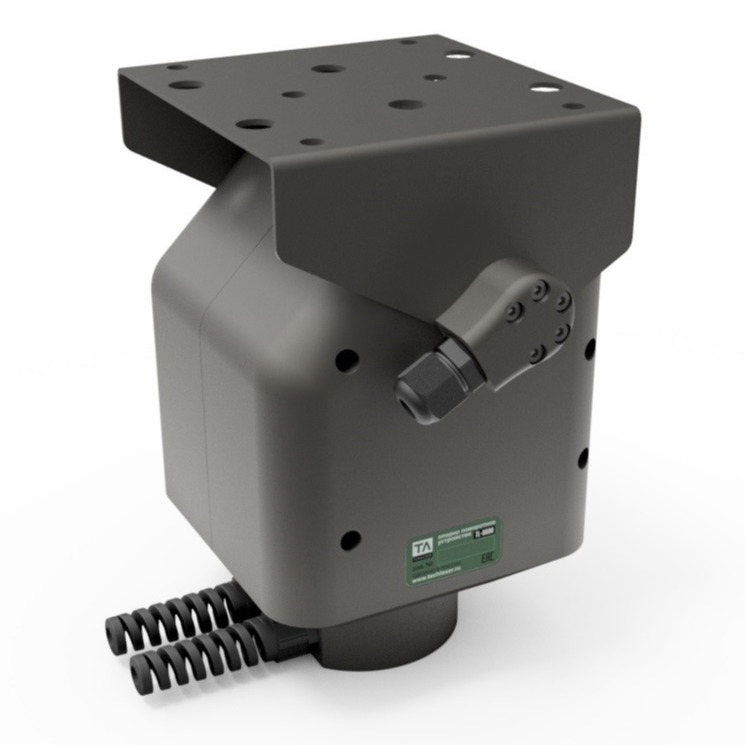

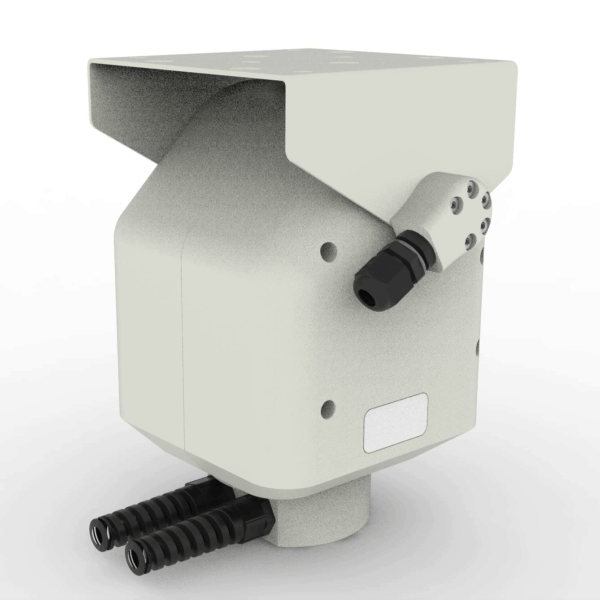

Pan Tilt Positioner TL.0009

• Pan angle
  360° continuous rotation
• Tilt angle
  -90° to +45°
• Pan speed
  0.01 to 40 °/sec
• Tilt speed
  0.01 to 14.8 °/sec
• Positioning accuracy (due to mechanical backlash)
  0,3°
• Maximum axial load
  20 kg
• Pan Torque
  0,4 ± (10 %) kgf·m / 3.92 N·m
• Tilt Torque
  1,2 ± (10 %) kgf·m / 11.76 N·m
• Control
  Ethernet
• Protocol
  Pelco-D and service protocol TechLaser
• Ethernet standard
  10/100BASE-T
• Power voltage
  24 VDC
• Current transmitted to the payload
  max. 10 А
• IP rating
  IP65
• Operating temperature
  от -40 до +50 °С
• Dimensions
  167×134×219 mm
• Weight
  7 kg
• Manufacturer
  TechLaser LLC (Russian Federation, Saint Petersburg)

Price upon request

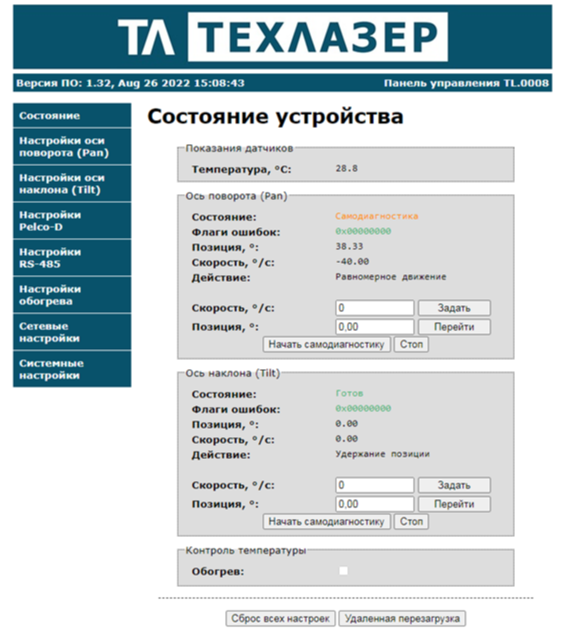

The two-axis rotary device (also known as pan tilt head / pan tilt unit / pan tilt device / pan tilt positioner) is controlled using Pelco-D protocols and the TechLaser service protocol.
