Pan Tilt Unit series TL.0250-XXX
A series of high-speed, high-precision, backlash-free, dual-axis Pan Tilt Positioner with a maximum permissible axial load of up to 40 kg and control via the Pelco-D protocol and the TechLaser protocol.
PTU is optionally equipped with a slip ring with gigabit Ethernet or single-mode fiber SMF 9/125 1310/1550 nm.
  • Own development and manufacturing
  • Gigabit Ethernet

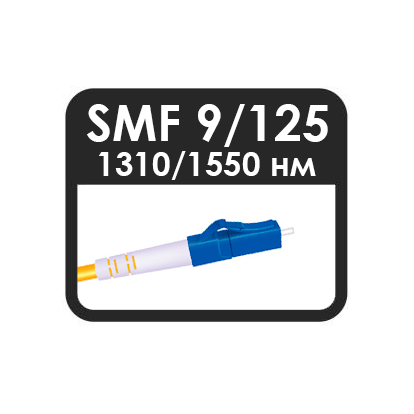

  • Single-mode optical fiber (SMF 9/125)

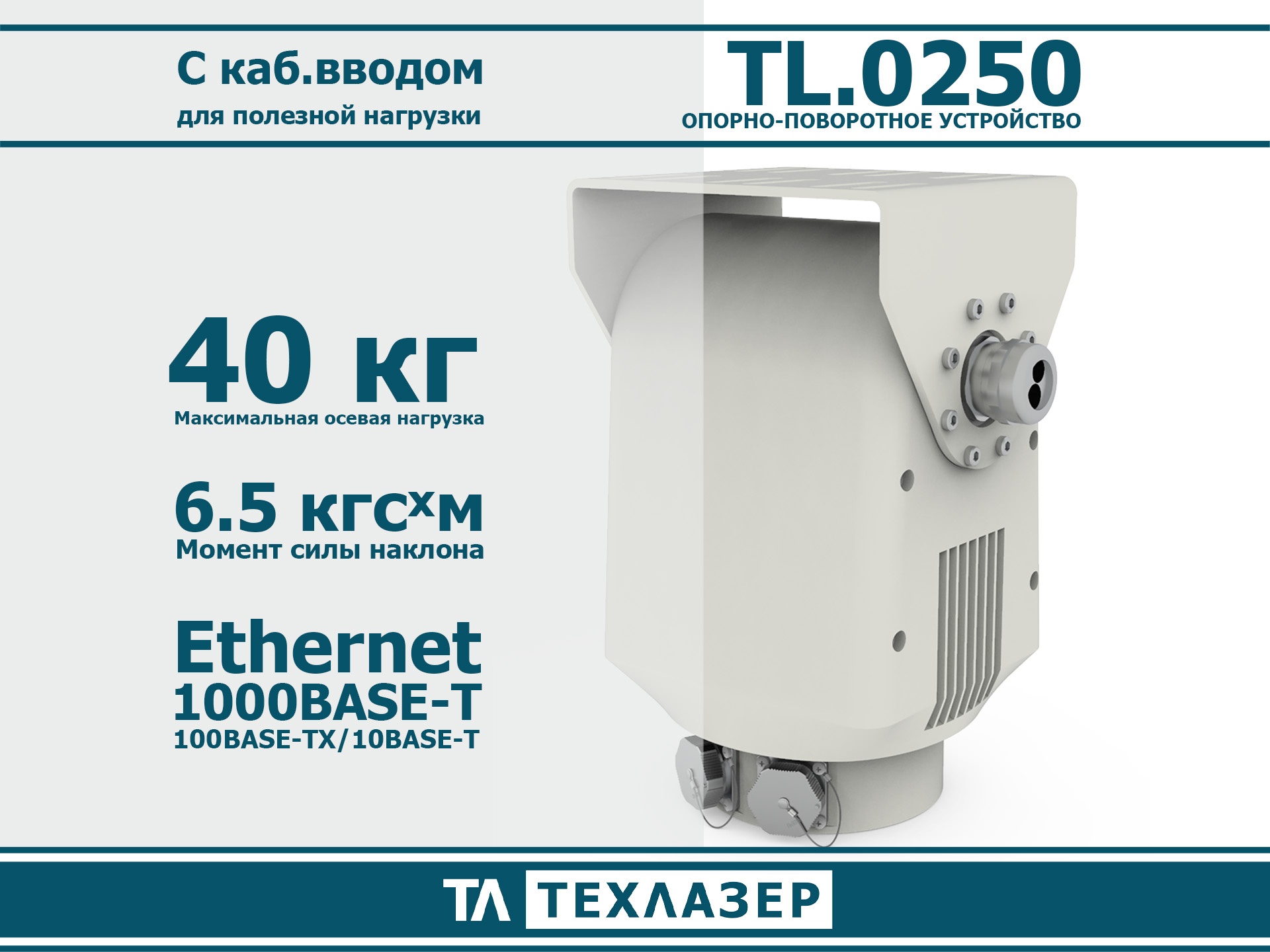

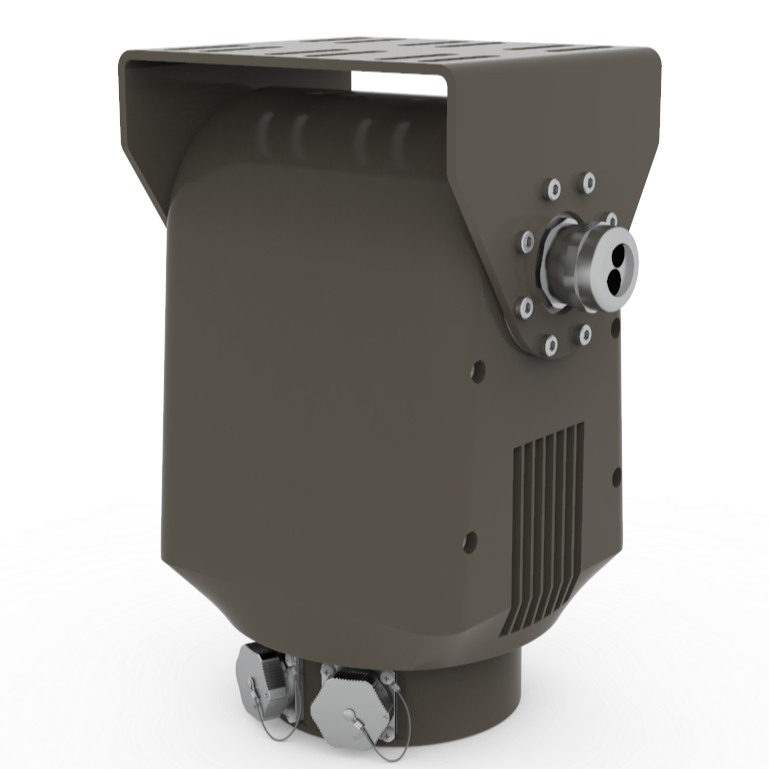

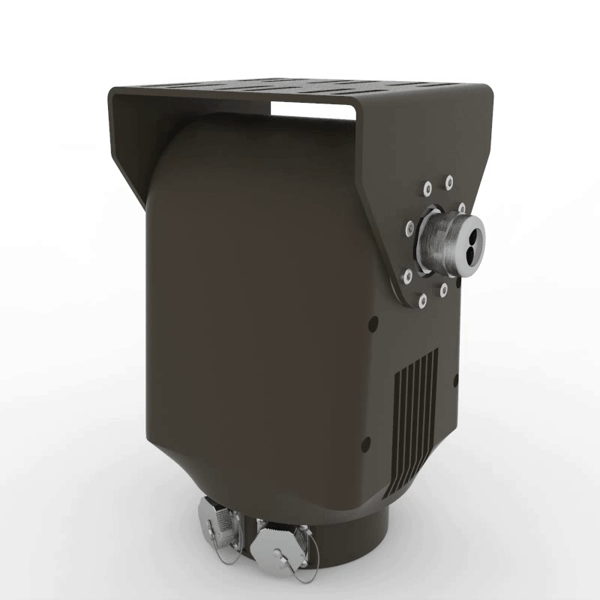

Pan Tilt Unit TL.0250

  • Pan angle
    360° continuous rotation
  • Tilt angle
    -90° to 90°
  • Pan speed
    upto 300 °/sec
  • Tilt speed
    upto 170 °/sec
  • Positioning accuracy
    0,05°
  • Maximum axial load
    40 kg
  • Pan Torque
    5.9 kgf·m / 57.86 N·m
  • Tilt Torque
    6,5 kgf·m / 63.74 N·m
  • Control
    Ethernet
  • Protocol
    Pelco-D and TechLaser-protocol
  • Ethernet standart
    1000BASE-T/100BASE-TX/10BASE-T
  • Nominal supply voltage
    48 VDC
  • Power consumption
    upto 800 W
  • Power transmitted to the payload
    max. 5000 W
  • Current transmitted to the payload
    max. 22 А
  • IP rating
    IP65
  • Operating temperature
    -40 to +50 °С
  • Dimensions
    146×204×288 mm
  • Weight
    12 kg
  • Manufacturer
    TechLaser LLC (Russian Federation, Saint Petersburg)

Price upon request

RequestEthernetCable glandOptical fiberConnectorsRAL 9003
Slip-ring type
RAL 6003RAL 7035
Payload exit
RAL 7013
Device color
Specifications

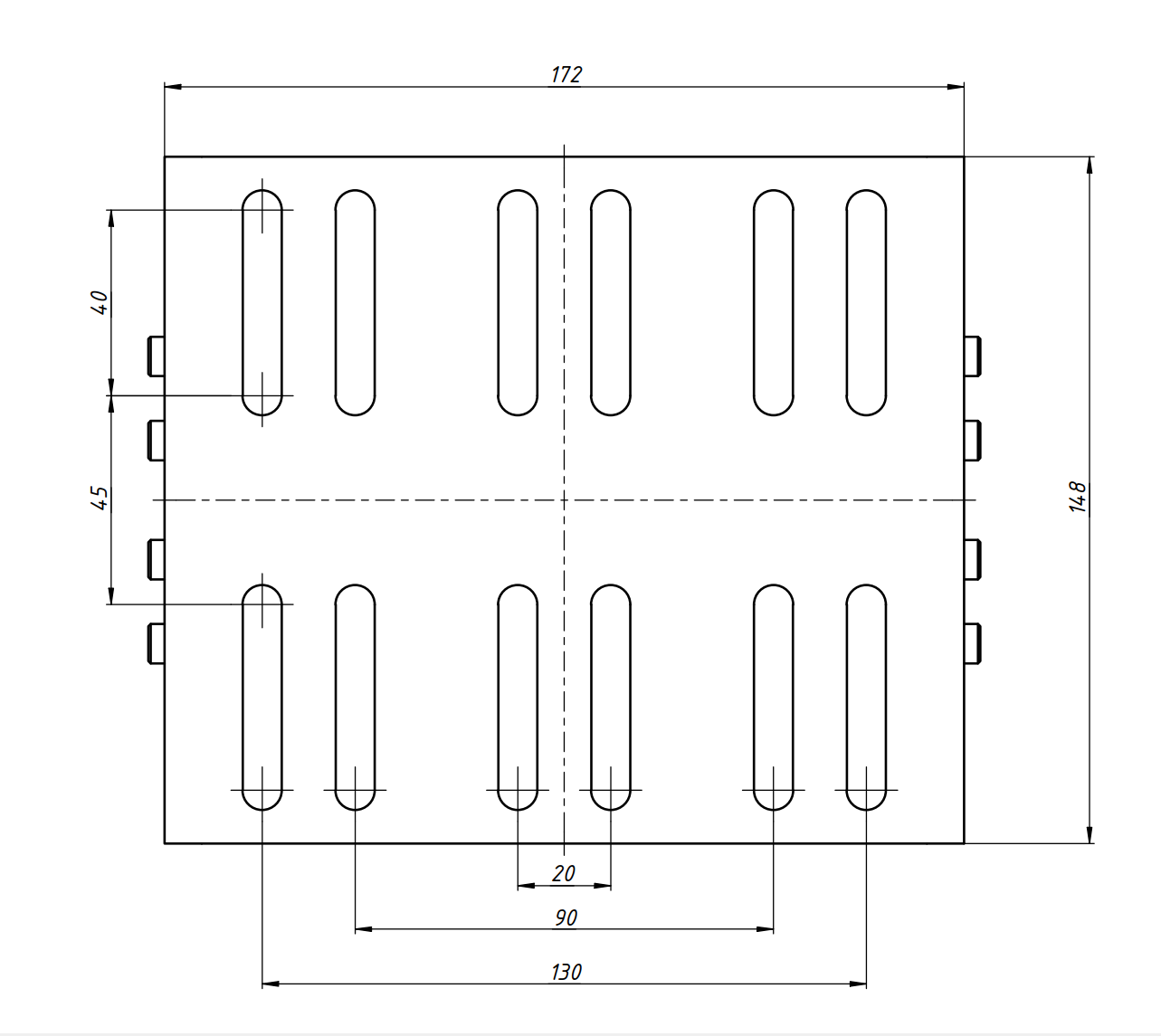

Universal Payload Bracket
The platform for attaching the payload has a universal mounting point, which allows any equipment to be installed without modification, be it a camera, a searchlight or a radar antenna.
image alt

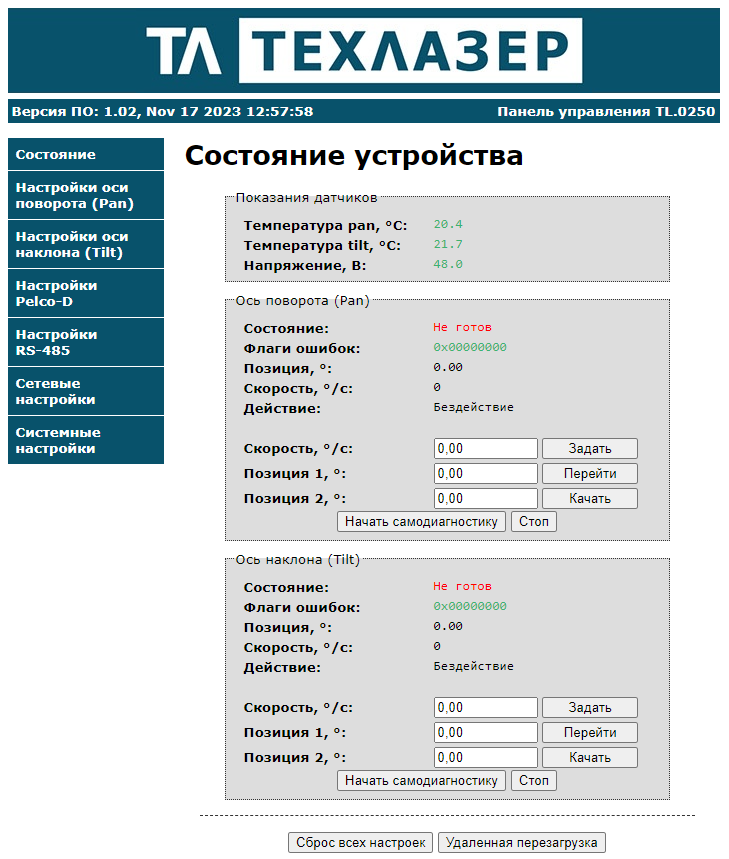

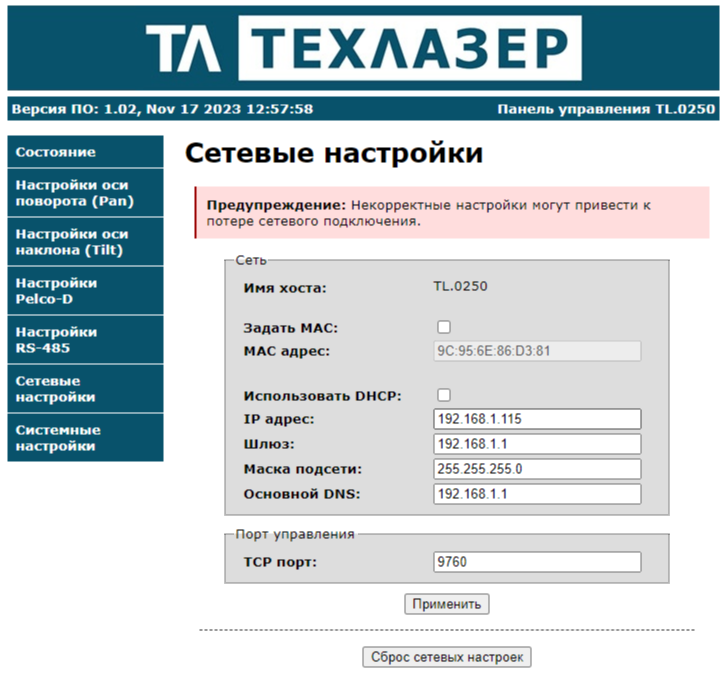

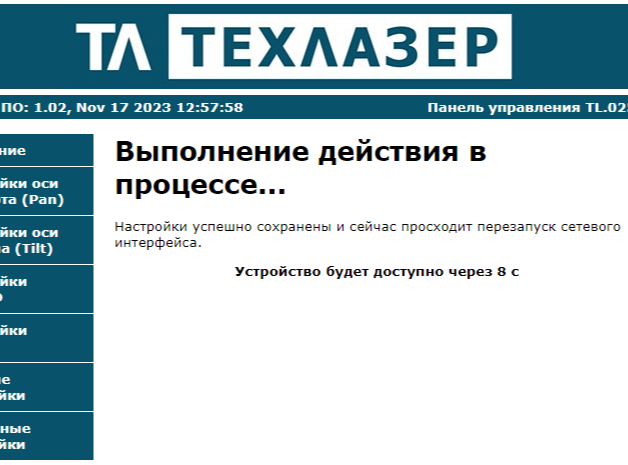

User-friendly web interface
There is no need to install any software. Each of our PTUs has a simple and clear web interface in two languages ​​(Russian and English), with which you can configure, monitor the status and control the Pan Tilt Positioner. Access to the web interface can be obtained by IP address 192.168.1.115 (by default) by entering it in the address bar of any browser.
